    Series
    2.2404

    Wedge Clamps for Tapered Clamping Edge

    double acting, max. clamping force 50 to 400 kN
    with form-fit safety step and position monitoring
    Wedge Clamps for Tapered Clamping Edge
    Downloads
    Catalogue sheet
    USESFR
    Operating instructions
    Information Series
    Description

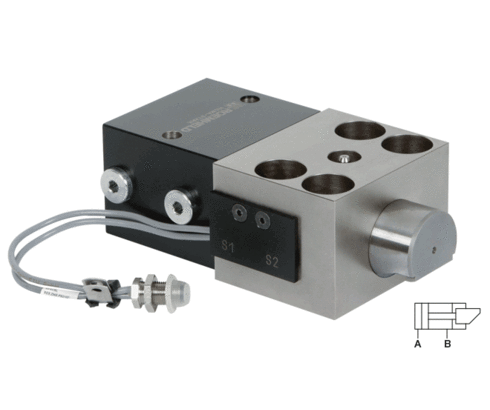

    2.2404 Wedge clamps

    with form-fit safety step and position monitoring

    This patented design has a form-fit safety step in the form of a lug at the clamping bolt, which has the same shape as the adapter on the mould/die clamping edge. In the case of pressure drop (machine failure or down time) the upper mould/die lowers to the safety step onto the safety lug and is safely held by form fit. The clamping bolt can not be returned to the unclamping position and the upper mould/die is safely held.

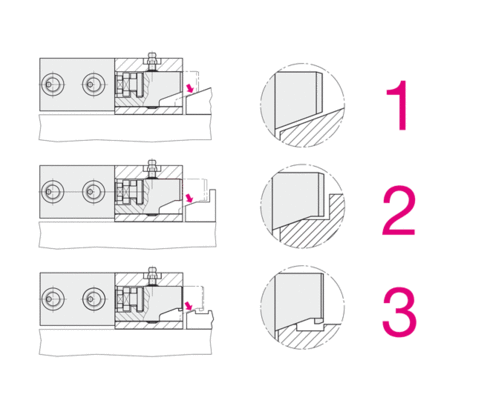

    Safety steps
    1. without safety step

    2. with safety step

    3. with form-fit safety step
    Accessories (12)
    Item no. CAD data Description
    Item no.
    5700013
    CAD data
    /
    Description
    Connecting line with screw coupling 5-pole cable length 5 m *as per catalogue sheet WZ 4.2150
    Item no.
    5700014
    CAD data
    /
    Description
    Connecting line with screw coupling 5-pole cable length 10 m *as per catalogue sheet WZ 4.2150
    Error loading CAD data. Please check your internet connection and try again.
    Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
