HIGH-TEMPERATURE SOLUTIONS FOR
FORGING AND TRIM PRESSES
ROEMHELD provides high-temperature Quick Die Change and Handling Systems that can significantly improve your facility's efficiency by reducing changeover times, making die changing easier for operators, and potentially reducing the need for highly skilled die setters all while prolonging tool life, and ensuring a high-quality level of finished products. Our products are suitable for impression die forging (closed die), cold forging, and open die forging.
HAPPY TO HELP
Let's Collaborate
Forging and Trim Press Solutions
Our Application Engineers in North America are happy to collaborate on forging and trim press solutions that address your unique challenges and leverage our expertise and capabilities to co-create custom yet cost-effective solutions from our standard components.
FORGE DIE MOVING AND HANDLING
Move large dies with ease
Moving large forging dies can be a challenging task due to their weight and size. ROEMHELD offers a range of die handling solutions that can help when moving large forging dies up to 50 tons. Our die handling equipment is designed to safely and efficiently move pre-heated dies, positioning them precisely in the press, reducing the risk of accidents, die damage and minimizing downtime.
Quick Die Changes to 50 Tons
The drive unit and carrying console are hung in hooks manually on the die-changing side of the press and lock in place; no further machining of the machine table is necessary!

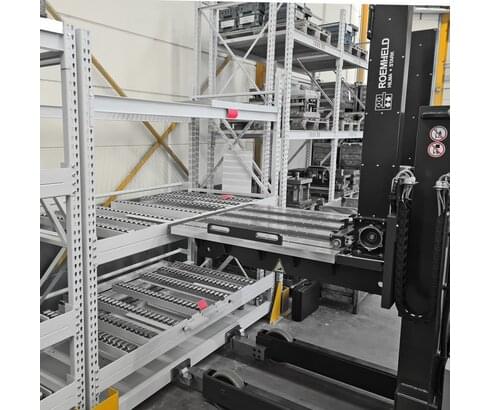

The die is deposited on the consoles using a crane or a die cart. Depending on the customer’s requirements, the die is coupled to the push chain of the changing unit with a customized die adapter. The integral chain drive system allows the user automatic die loading and positioning by depressing a push-button on a separate remote control pendant. Sensors and stops can be integrated into the control system.

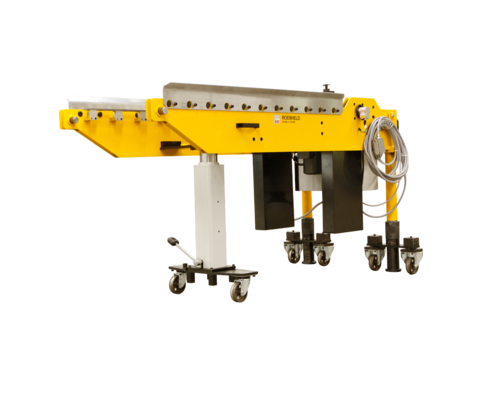

Gentle Transport of Heavy Dies
Powered or manual carts that transport dies up to 3600 lbs., and helps the dies to be safely transported efficiently.
- Time-saving die change
- Safe material transport
- Exact positioning
- Safe and easy die transport
- Improved ergonomics for the user
- Highest safety by the automatic docking station

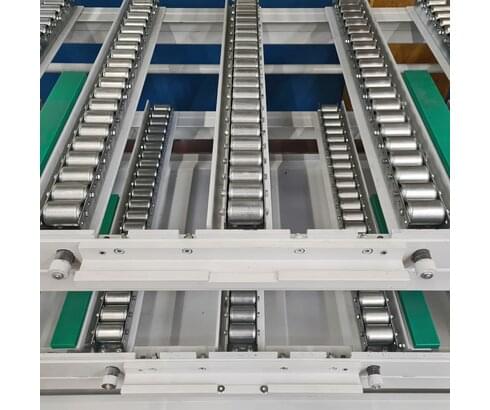

Roll Your Dies Easily Into Place
Roller bars and ball bars with hydraulic or spring lifting of the individual rollers for easy die movement integrated into storage racks, die carts or on the press.
The lifting pistons are below each roller. Each roller is lifted individually. The base body remains in a fixed position. The die positioned on the rollers is not in contact with the tabletop and can be easily positioned.
- Roller spacing and orientation are flexible
- Temperature range available up to 482°F
Forging Die Clamping and Positioning
Replace labor-intensive bolt tightening
Die failure is a significant concern that often occurs in the forge shop due to increased competitive pressures. ROEMHELD die clamping and positioning for forging is designed to suit the adverse conditions of forging while consistently clamping the die in place. This leads to less die movement extending the life of the die and increasing the accuracy, which produces a higher quality product.

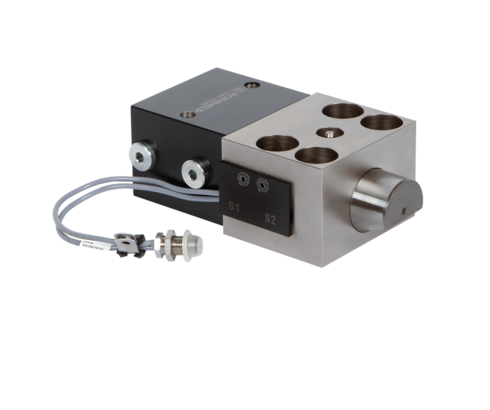

Wedge Clamps for Forging
Wedge Clamps are designed to suit the adverse conditions of forging while minimizing press downtime.
The retracting clamping bolt and its rugged housing help to isolate forging heat and shock loads from the hydraulic circuit. The wedge clamp’s self-locking tapered bolt clamps on a mating 20° beveled surface on the die. Wedge clamps with a vertical clamping bar can be integrated into the lower master die set. The bar further isolates the hydraulics from the heat of the process and can be removed during the tool change.
- Self-locking clamp bolt isolates heat and shock
- In-die mounting and optional series valve increase safety
- Integrated cooling circuit available for high-temperature applications
- Clamping forces range from 22,000 to 143,000 lbs.
-
Compatible with fire-resistant hydraulic fluids
-
Automation possible

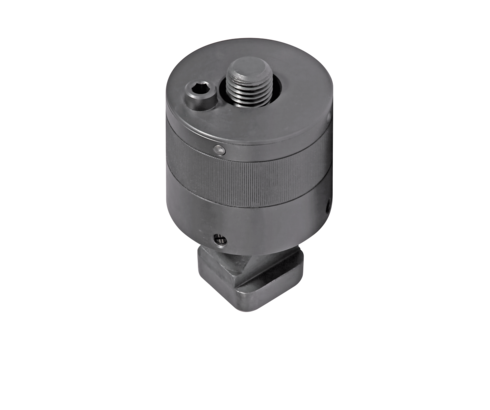

High Clamping Force Generated with Small Torque
Following manual positioning of the clamping nut against the clamping edge, the internal gear will be operated by turning the hexagon socket. As a result of the gear transmission, the tightening torque is multiplied. To reliably ensure the required clamping force, we recommend using a torque wrench.
- Clamping forces from 13,500 lbs to 40,000 lbs
- Temperature range -22°F to 392°F

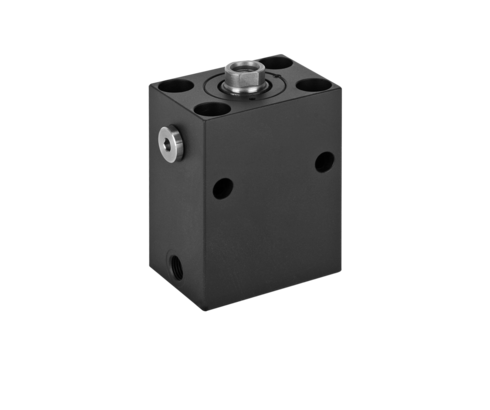

Move Dies During Production
Use block cylinders with position monitoring to move dies during production.
Block cylinders, single or double-acting, are made of high alloy steel, bronze alloy, and special aluminum alloys. They can be installed in any position and have a max stroke speed of 0.25 m/s. ROEMHELD block cylinders do not leak oil when static. Stroke leakage is at a minimum due to the double piston sealing.
Clamping for Trim Presses
Trim presses do not see the severe environment and tremendous forces seen in the forge press. Because of this, there are more clamping choices, such as hollow piston, sliding, fixed mounted clamping bar, and others.
When the trim press is configured with hydraulic clamps and die lifters to provide a quick die change, there are many advantages including the elimination of manual clamping on hot dies, single minute exchange of dies (SMED); which means more press uptime, and die lifters and die supports to provide a rolling surface for ergonomic die exchange.
Control All the Clamps and Lifters in the Die Change System
For operating hydraulic clamping fixtures and other handling and clamping systems on presses.
Forging and Trim Press Solutions
Contact us for a free estimate
Our Application Engineers in North America are happy to collaborate on forging and trim press solutions that address your unique challenges and leverage our expertise and capabilities to co-create custom yet cost-effective solutions from our standard components.
