    Series
    B1.311

    Universal cylinders

    Articles and prices on request
    double acting
    max. operating pressure 400 bar
    Universal cylinders
    Downloads
    Catalogue sheet
    USESFR
    Operating instructions
    Information Series
    Description

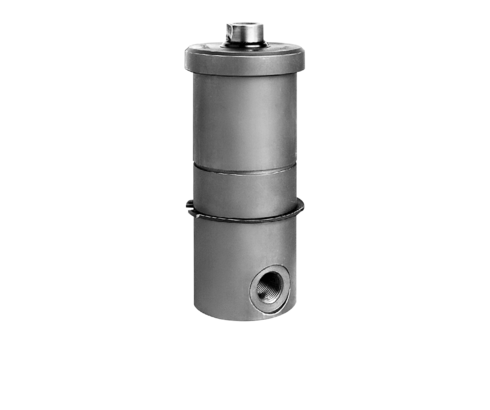

    B1.311 Universal Cylinders

    Application

    These cylinders are used as lifting and clamping cylinders in machine and fixture building. They can be inserted in the smooth throughhole and fixed in different levels by means of a locking ring.



    Description

    • Large clamping force range
    • Radial and axial oil ports
    • High degree of sealing
    • Wiper as protection of contamination, swarf, and coolants
    Products (5)
    Article available on request
    On request, we will check whether the article is still available
    stroke [mm]
    functioning
    double acting (5)
    piston diameter [mm]
    rod diameter [mm]
    max. force to push [kN]
    max. pulling force [kN]
    max. operating pressure [bar]
    400 (5)
    seals
    NBR (5)
    fixation
    piston rod end
    hydraulic ports
    Item no. CAD datastroke [mm]functioningpiston diameter [mm]rod diameter [mm]
    Item no.
    5112303
    CAD data
    stroke [mm]
    32
    functioning
    double acting
    piston diameter [mm]
    25
    rod diameter [mm]
    14
    Properties
    Item no.
    5112403
    CAD data
    stroke [mm]
    40
    functioning
    double acting
    piston diameter [mm]
    32
    rod diameter [mm]
    18
    Properties
    Item no.
    5112503
    CAD data
    stroke [mm]
    50
    functioning
    double acting
    piston diameter [mm]
    40
    rod diameter [mm]
    22
    Properties
    Item no.
    5112603
    CAD data
    stroke [mm]
    64
    functioning
    double acting
    piston diameter [mm]
    50
    rod diameter [mm]
    28
    Properties
    Item no.
    5112703
    CAD data
    stroke [mm]
    64
    functioning
    double acting
    piston diameter [mm]
    63
    rod diameter [mm]
    36
    Properties
    Item no.
    5112303
    stroke [mm]
    32
    functioning
    double acting
    piston diameter [mm]
    25
    rod diameter [mm]
    14
    max. force to push [kN]
    19.6
    max. pulling force [kN]
    13.2
    max. operating pressure [bar]
    400
    seals
    NBR
    fixation
    circlip D50
    piston rod end
    internal thread M8
    hydraulic ports
    G1/4
    Item no.
    5112403
    stroke [mm]
    40
    functioning
    double acting
    piston diameter [mm]
    32
    rod diameter [mm]
    18
    max. force to push [kN]
    32
    max. pulling force [kN]
    22
    max. operating pressure [bar]
    400
    seals
    NBR
    fixation
    circlip D58
    piston rod end
    internal thread M10
    hydraulic ports
    G1/4
    Item no.
    5112503
    stroke [mm]
    50
    functioning
    double acting
    piston diameter [mm]
    40
    rod diameter [mm]
    22
    max. force to push [kN]
    50
    max. pulling force [kN]
    34.8
    max. operating pressure [bar]
    400
    seals
    NBR
    fixation
    circlip D68
    piston rod end
    internal thread M12
    hydraulic ports
    G1/4
    Item no.
    5112603
    stroke [mm]
    64
    functioning
    double acting
    piston diameter [mm]
    50
    rod diameter [mm]
    28
    max. force to push [kN]
    78.4
    max. pulling force [kN]
    54
    max. operating pressure [bar]
    400
    seals
    NBR
    fixation
    circlip D80
    piston rod end
    internal thread M16
    hydraulic ports
    G1/4
    Item no.
    5112703
    stroke [mm]
    64
    functioning
    double acting
    piston diameter [mm]
    63
    rod diameter [mm]
    36
    max. force to push [kN]
    124.4
    max. pulling force [kN]
    84
    max. operating pressure [bar]
    400
    seals
    NBR
    fixation
    circlip D95
    piston rod end
    internal thread M20
    hydraulic ports
    G3/8
    Error loading CAD data. Please check your internet connection and try again.
    Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
