J7.201

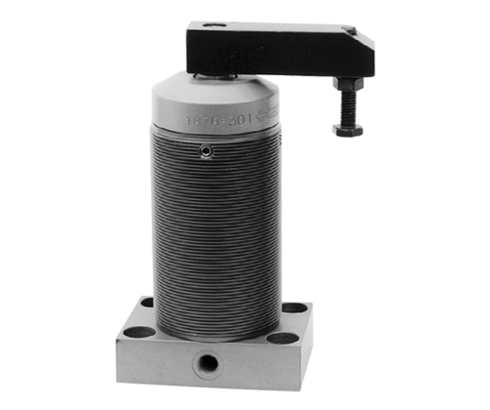

Pneumatic swing clamp

for adjustable magnetic sensors
double acting, max. operating pressure 7 bar
Pneumatic swing clamp
Downloads
Catalogue sheet
Operating instructions
Request product
Check Pricing and Availability
Go to Carrlane.com
Information Series
Description
Pneumatic swing clamps

Application
Pneumatic swing clamps are used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading. Pneumatic swing clamps are used for applications which require only low clamping forces. The installed magnetic piston allows monitoring of clamping and unclamping position.

Function
A swing clamp is a pull-type cylinder where a part of the total stroke is used to swing the piston (swing stroke) and the screwed-on clamping arm.

function
function

Description
When pressurising the element, the clamping arm swings and lowers by 90° to the clamping position and then lowers to the clamping point. The position monitoring gives the required information regarding the position of the piston, but not regarding the position of the clamping arm. Monitoring is made by electronic sensors (see accessory) which detect the magnetic field of the magnetic piston. The switching points can be continuously adjusted by displacement of the magnetic sensors.


Material
The swing clamps are supplied in corrosion resistant quality. Guide bushing, housing, piston, and flange are made of anodized aluminium. The piston rod is made of stainless steel.

Swing direction
90° swing angle, alternatively available with clockwise or counterclockwise swing motion. "Swing direction cw" designates the clockwise rotation of the piston starting from the extended position (off-position). Accordingly, the "swing direction ccw" is a counterclockwise rotation.

swing direction
swing direction
Threaded-body type J 7.201

On fixtures flange-type swing clamps (flange is an accessory) or threaded-body types with corresponding collar nuts can be easily adjusted to different workpiece heights.

Position monitoring with magnetic sensors

A permanent magnet is fixed to the piston, and its magnetic field is detected by a magnetic electronic sensor.

Compared with traditional reed switches the electronic magnetic sensors offer the following advantages:
- indifference to shock and vibration
- bounce-free output signal
- only one switching point
- wear resistant
- protection against reverse battery
- protected against short circuits

Electrical connection is made as per traditional inductive proximity switches. Up to four magnetic sensors can be connected in series.
Fixing of the magnetic sensors at the threaded-body type J7.201 is made by means of a hose clamp at the body of the swing clamp. At the block type J7.202 and at the top flange type J7.203 they are fixed in the slots of the body.

Important notes

Operating of these pneumatic elements has to be effected with an additional service unit in order to guarantee that the clamping elements are supplied with correctly prepared compressed air.
In any case the swing motion must not be impeded.
When using special clamping arms with other lengths, the corresponding operating pressures as shown in the clamping force diagram must not be exceeded.
