Series
D8.800
Hydraulic pump
manually operated
max. operating pressure 100, 200 and 500 bar
max. operating pressure 100, 200 and 500 bar
Information Series

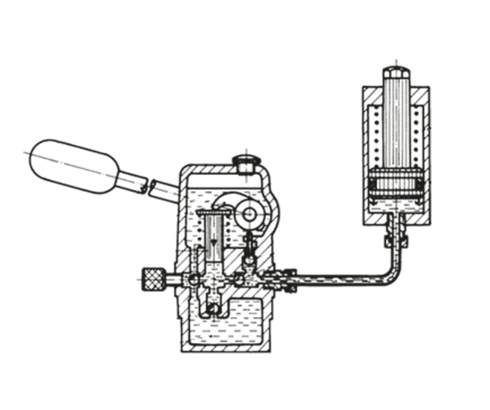

Description

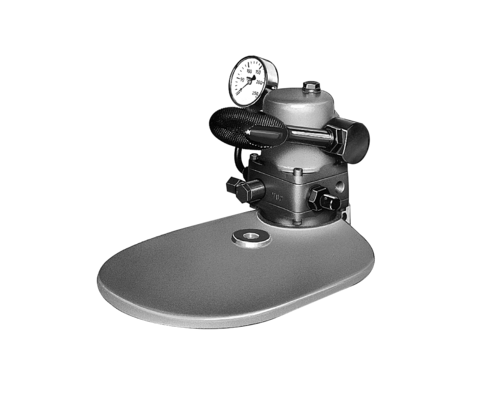

D 8.800 Hydraulic pumps
In connection with our clamping elements, workpieces can be clamped economically with this clamping pump. Furthermore, this pump can be used for lifting loads, adjusting and clamping tables, as well as for other operating processes.
The particular advantages of this pump are:
- Choice of hand or foot operation
- Pumping and releasing with the same lever
- Continuously adjustable pressure relief valve
- Metallic seal on pump piston, thereby nearly wear-free
- Compact, self-contained design
Delivery without accessories
Hydraulic lifting pumps with safety hand or foot lever are assembled and ready for operation.
Products (18)
Loading…
Item no. | CAD data | type | type | max. operating pressure [bar] | oil volume V [cm3] | |
---|---|---|---|---|---|---|
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
|
Loading…
Item no.
type
hydro clamping pump
type
without lever (accessory)
max. operating pressure [bar]
200
oil volume V [cm3]
300
oil volume, useable [cm3]
150
displacement per stroke [cm³]
4
Item no.
type
hydro clamping pump
type
with safety pedal
max. operating pressure [bar]
200
oil volume V [cm3]
300
oil volume, useable [cm3]
150
displacement per stroke [cm³]
4
Item no.
type
hydro clamping pump
type
with safety hand lever
max. operating pressure [bar]
200
oil volume V [cm3]
300
oil volume, useable [cm3]
150
displacement per stroke [cm³]
4
Item no.
type
hydro clamping pump
type
without lever (accessory)
max. operating pressure [bar]
100
oil volume V [cm3]
300
oil volume, useable [cm3]
150
displacement per stroke [cm³]
8
Item no.
type
hydro clamping pump
type
with safety pedal
max. operating pressure [bar]
100
oil volume V [cm3]
300
oil volume, useable [cm3]
150
displacement per stroke [cm³]
8
Item no.
type
hydro clamping pump
type
with safety hand lever
max. operating pressure [bar]
100
oil volume V [cm3]
300
oil volume, useable [cm3]
150
displacement per stroke [cm³]
8
Item no.
type
hydro clamping pump
type
without lever (accessory)
max. operating pressure [bar]
100
oil volume V [cm3]
970
oil volume, useable [cm3]
750
displacement per stroke [cm³]
8
Item no.
type
hydro clamping pump
type
with safety pedal
max. operating pressure [bar]
100
oil volume V [cm3]
970
oil volume, useable [cm3]
750
displacement per stroke [cm³]
8
Item no.
type
hydro clamping pump
type
with safety hand lever
max. operating pressure [bar]
100
oil volume V [cm3]
970
oil volume, useable [cm3]
750
displacement per stroke [cm³]
8
Item no.
type
hydro clamping pump
type
without lever (accessory)
max. operating pressure [bar]
200
oil volume V [cm3]
970
oil volume, useable [cm3]
750
displacement per stroke [cm³]
4
Accessories (8)
Item no. | CAD data | Description |
---|---|---|
Item no.
|
CAD data
|
Description
Pedal for hydraulic pump 880X-XXX
as per data sheet D8.800
|
Item no.
|
CAD data
|
Description
Hand lever for hydraulic pump 880X-XXX
as per data sheet D8.800
|
Item no.
|
CAD data
|
Description
Base plate, complete
for hydraulic pump 880X-XX
as per data sheet D8.800
|
Item no.
|
CAD data
|
Description
Bracket, complete
for hydraulic pump 880X-XX
as per data sheet D8.800
|
Item no.
|
CAD data
|
Description
Flange, complete
for hydraulic pump 880X-XX
as per data sheet D8.800
|
Item no.
|
CAD data
|
Description
Pressure gauge with 90°-elbow
max. 250 bar, as per data sheet D8.800
|
Item no.
|
CAD data
|
Description
Pressure gauge with 90°-elbow
max. 600 bar, as per data sheet D8.800
|
Item no.
|
Description
Hydraulic oil HLP32 as per DIN 51524-2
1 litre in a reservoir
as per data sheet F9.300
|
