F 9.361 Hydraulic high-pressure hoses

Application
High-pressure hoses are used for energy and signal transmission in hydraulic systems. Especially when connecting movable elements, but also for the connection of hydraulic subassemblies which are not fixed on a common base, e.g. power units and clamping fixtures.

Hose structure
Depending on operating pressure and nominal diameter, high-pressure hoses consist of one or several layers of wire or textile mesh or spiral inlays.
1: Inner tube
2: Inlay
3: Cover
4: Hose wall
5: Insulation layer

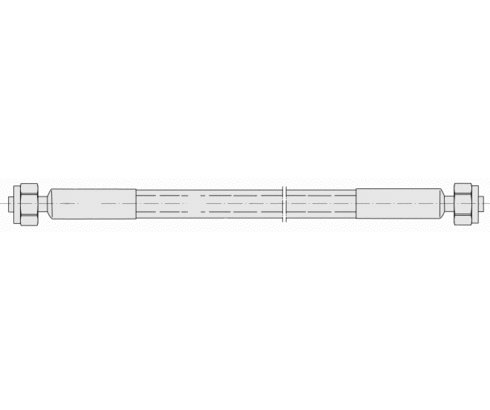

Hose connection
After pressing of the hose fittings at both ends the high-pressure hose is ready for connection.
1: Hose
2: Nipple
3: Holder
4: Union nut
5: Hose fitting

Service life / installation instructions
The application time including storage time should not exceed 6 years, the net storage time 2 years.High temperatures, frequent motion cycles or high pulse frequencies can reduce the application time.

Maintenance
Before putting into operation and then at least once a year, the high-pressure hoses have to be checked by an expert if they are still leak-proof.

Marking hose
on the hose there is the following marking:

  • name or code of the manufacturer
  • number of European standard
  • type
  • nominal diameter
  • quarter and the last two figures of the year of manufacture


Marking fitting
on the fitting there is the following marking:

  • name or code of the manufacturer
  • month of manufacture
  • the last two figures of the year of manufacture
  • nominal pressure PN of the hose fitting
  • part number of the complete hydraulic hose



Important notes
We deliver only completely pressed high-pressure hoses with mounted union nut.Pipe sockets with removable cutting ring and union nut are no longer allowed.

Products (20)
Loading…
type
high-pressure hose (20)
type
max. operating pressure [bar]
Item no. CAD datatypetypemax. operating pressure [bar]
Item no.
CAD data
type
high-pressure hose
type
ND6.3 - length 500 mm
max. operating pressure [bar]
250
Properties
Item no.
CAD data
type
high-pressure hose
type
ND6.3 - length 1000 mm
max. operating pressure [bar]
250
Properties
Item no.
CAD data
type
high-pressure hose
type
ND6.3 - length 1600 mm
max. operating pressure [bar]
250
Properties
Item no.
CAD data
type
high-pressure hose
type
ND6.3 - length 2500 mm
max. operating pressure [bar]
250
Properties
Item no.
CAD data
type
high-pressure hose
type
ND6.3 - length selectable
max. operating pressure [bar]
250
Properties
Item no.
CAD data
type
high-pressure hose
type
ND6 - length 500 mm
max. operating pressure [bar]
500
Properties
Item no.
CAD data
type
high-pressure hose
type
ND6 - length 1000 mm
max. operating pressure [bar]
500
Properties
Item no.
CAD data
type
high-pressure hose
type
ND6 - length 1600 mm
max. operating pressure [bar]
500
Properties
Item no.
CAD data
type
high-pressure hose
type
ND6 - length 2500 mm
max. operating pressure [bar]
500
Properties
Item no.
CAD data
type
high-pressure hose
type
ND6 - length selectable
max. operating pressure [bar]
500
Properties
Loading…
Item no.
type
high-pressure hose
type
ND6.3 - length 500 mm
max. operating pressure [bar]
250
Item no.
type
high-pressure hose
type
ND6.3 - length 1000 mm
max. operating pressure [bar]
250
Item no.
type
high-pressure hose
type
ND6.3 - length 1600 mm
max. operating pressure [bar]
250
Item no.
type
high-pressure hose
type
ND6.3 - length 2500 mm
max. operating pressure [bar]
250
Item no.
type
high-pressure hose
type
ND6.3 - length selectable
max. operating pressure [bar]
250
Item no.
type
high-pressure hose
type
ND6 - length 500 mm
max. operating pressure [bar]
500
Item no.
type
high-pressure hose
type
ND6 - length 1000 mm
max. operating pressure [bar]
500
Item no.
type
high-pressure hose
type
ND6 - length 1600 mm
max. operating pressure [bar]
500
Item no.
type
high-pressure hose
type
ND6 - length 2500 mm
max. operating pressure [bar]
500
Item no.
type
high-pressure hose
type
ND6 - length selectable
max. operating pressure [bar]
500
