Series
B1.825
Hinge clamps
Articles and prices on request
double acting, max. operating pressure 200 bar
Information Series
Description

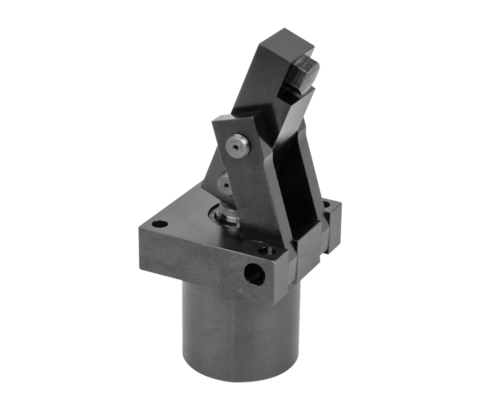

B 1.825 Hinge clamp
When pressurising the element, the piston moves from the unclamped position upwards. The clamping lever swivels forward by means of the two links and at the same time downwards onto the workpiece. The clamping lever is provided with an internal thread to accept a contact bolt, which can be easily exchanged. Oil supply is made from the back by means of fittings.
Products (3)
Article available on request
On request, we will check whether the article is still available
Loading…
Item no. | CAD data | type | functioning | max. operating pressure [bar] | seals | |
---|---|---|---|---|---|---|
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
| ||||
Item no.
|
CAD data
|
Properties
|
Loading…
Item no.
type
hinge clamp
functioning
double acting
max. operating pressure [bar]
200
seals
NBR
hydraulic ports
pipe thread
body design
top flange
position monitoring
without
pressure range
high pressure
clamping lever
with internal thread M10
clamping stroke [mm]
6
extended piston rod
without
max. clamping force [kN]
18
metallic wiper edge
without
Item no.
type
hinge clamp
functioning
double acting
max. operating pressure [bar]
200
seals
NBR
hydraulic ports
pipe thread
body design
top flange
position monitoring
without
pressure range
high pressure
clamping lever
long clamping lever, unmachined
clamping stroke [mm]
6
extended piston rod
without
max. clamping force [kN]
18
metallic wiper edge
without
Item no.
type
hinge clamp
functioning
double acting
max. operating pressure [bar]
200
seals
NBR
hydraulic ports
pipe thread
body design
top flange
position monitoring
without
pressure range
high pressure
clamping lever
cranked clamping lever
clamping stroke [mm]
6
extended piston rod
without
max. clamping force [kN]
18
metallic wiper edge
without
Accessories (1)
Article available on request
On request, we will check whether the article is still available
Item no. | CAD data | Description |
---|---|---|
Item no.
|
CAD data
|
Description
Swivel contact bolt M10 x 10 mm
ball - flat face Ø 10.5 mm
admissible load 25 kN
as per data sheet G3.800
|
