Series
RHI-S018

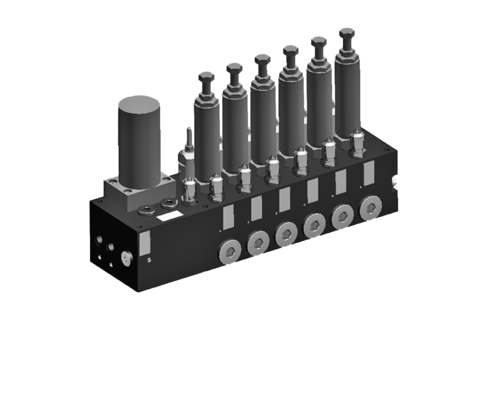

Valve Module Combinations

max. operating pressure 400 bar
Valve Module Combinations
Descargas
Hoja del catálogo
No hay hojas del catálogo disponibles.
Instrucciones de servicio
Sobre demanda.
Informaciones de la serie
Description

Description
The valve module combination consists of an input module and up to four series modules (for linkage of further modules please consult us). The series modules can be equipped with different individual function elements.
The input modul can be optional equipped with an intensifier to convert a low input pressure of a machine tool hydraulic system into a higher output pressure level.

In the input module without intensifier the following hydraulic function elements are integrated:
 • Check valve as a back pressure stop.
 • Miniature measuring connection to connect a pressure gauge for pressure adjustment.

In the input module with intensifier the following hydraulic function elements are integrated:
 • Two inbuilt filters in the clamping and unclamping line with by-pass check valves.
 • Check valve for back pressure stop.
 • Miniature measuring connection to connect a pressure gauge for pressure adjustment.
