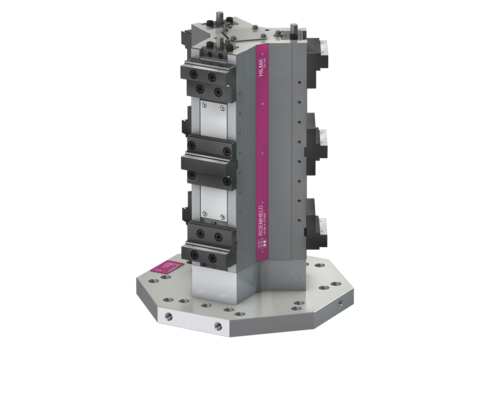

Sistemas de sujeción en torre HILMA.TS TriStar
mechanically operated
jaw widths 80, 100 and 125 mm
with 3 clamping sides
Description
The tower workholding systems HILMA.TS TriStar convince with their durability and precision. The patented guidance and sealing principle works without any delicate sheet metal covers or plastic wipers. The design as a monoblock, without interfaces to each screwed clamping systems, stands for high stability and high accuracy. The centrally arranged fixed jaw as a central jaw is without load and thus absolutely zero point stable. The workpieces are positioned close to each other, thus reducing the travel paths of the machining centre to a minimum. The purely mechanical operation enables clamping also with low and always reproducible clamping forces.
These characteristics turn the tower workholding systems HILMA.TS TriStar into a flexible standard fixture for a wide variety of applications in modern production.
Advantages
● 3 sizes for optimum design to the machining centre
● Clamping of 3, 6 or 12 workpieces with standard jaws
● Clamping of different workpiece dimensions also on one side
● Purely mechanical build up of the clamping force
● Easy and safe operation
● Large jaw openings and high flexibility due to extensive range of clamping jaws
● Highest stability by design as a monoblock
● Optimum protection against contamination and wear through patented guidance and sealing
● Process-safe application of clamping force, also when using grip jaws
● Optimised accessibility
Referencia | Datos CAD | tipo | accionamiento | fuerza máx. de sujeción [kN] | principio de sujeción | |
---|---|---|---|---|---|---|
Referencia
|
Propiedades
| |||||
Referencia
|
Propiedades
| |||||
Referencia
|
Datos CAD
|
Propiedades
| ||||
Referencia
|
Propiedades
| |||||
Referencia
|
Propiedades
| |||||
Referencia
|
Propiedades
| |||||
Referencia
|
Propiedades
| |||||
Referencia
|
Propiedades
|

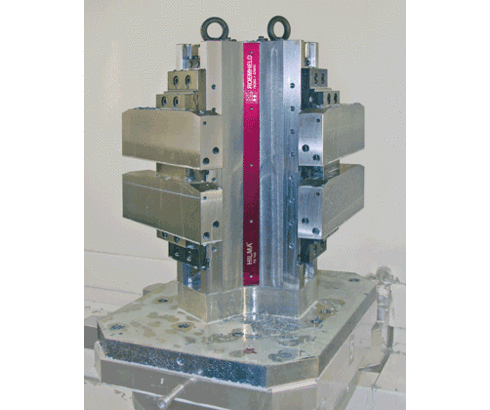

Mechanically-operated triangle clamping tower "HILMA.TS 100 Tri-Star" for larger components. The clamping system offers the optimum accessibility for the 3-side machining in horizontal machining centres. The tower clamping system is also suitable for clamping of complex workpiece contours and the simultaneous machining of up to 12 workpieces with identical and different dimensions in horizontal machining centres. The programmable zero points at the clamping tower are the same as for the 4-side clamping towers, also the clamping jaws are absolutely compatible. The patented guide and sealing system guarantees maximum process safety, even for complex machining tasks. The aluminium base plate can be adapted to a wide variety of machine pallets.
